Burton Living
Lynden 3.3 Metre Octagonal
Lynden 3.3 Metre Octagonal
330CM OCTAGONAL
2 YEAR FADE WARRANTY ON OLEFIN FABRIC
40 KM/HR WIND RATED
OLEFIN CANOPY, GRAPHITE POWDER COATED FRAME

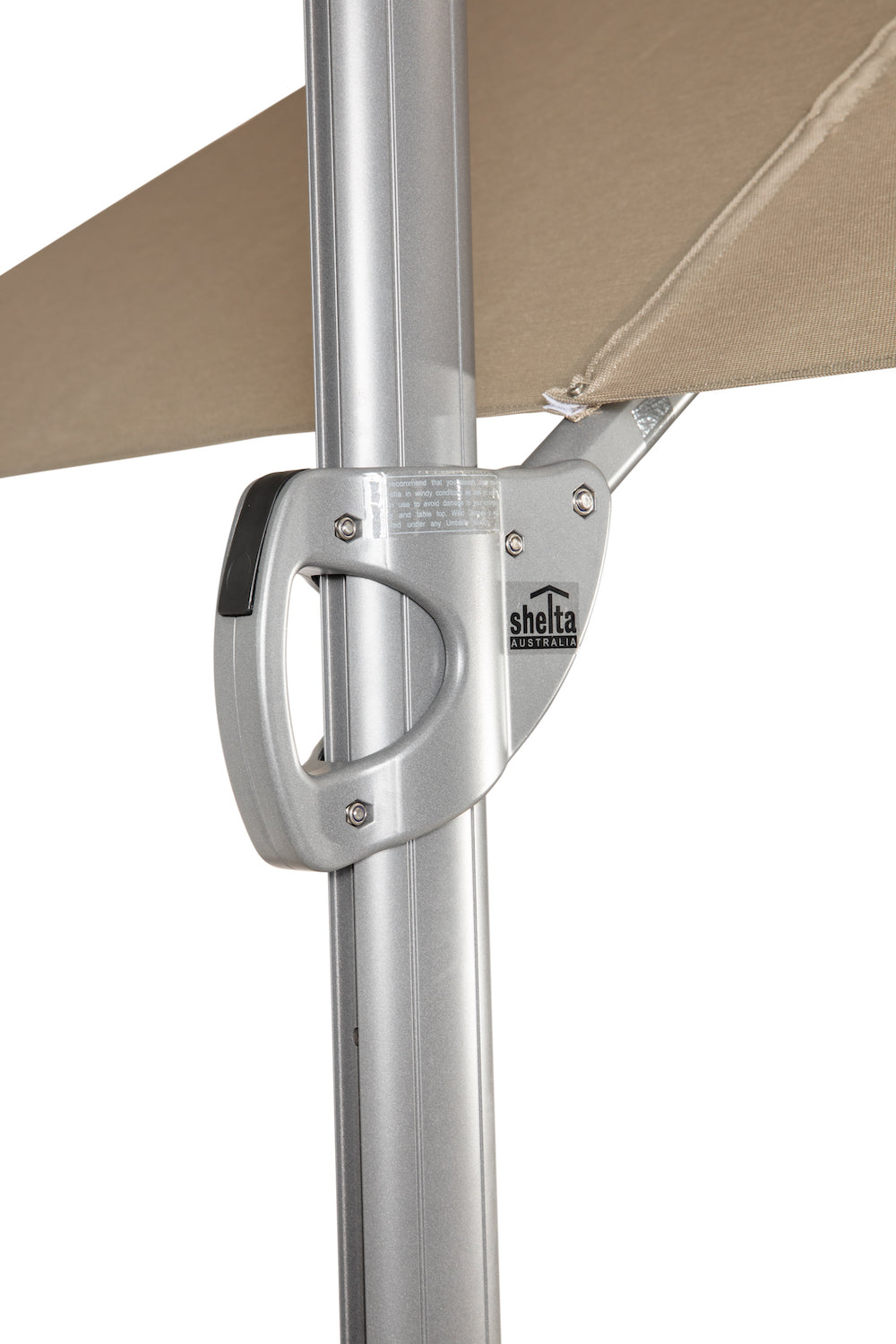

Shelta’s smaller Cantilever options, it features a smaller (75 x 50mm) version of the oval section Savannah mast. It also shares other Shelta Cantilever features, 360˚ rotate (with foot lock), variable tilt to 60˚ with multi ‘pistol grip’ tilt lock, LED light mount with winder opening / closing. Includes Polyester Protective Cover.
Please note –
- 330cm Octagonal is available in Grey, and Taupe
INSTALLATION
On Ground Base Plate or 4 piece resin Base filled with water or Sand
(Plate included). Six to eight ballast blocks needed, recommended total weight 120kg.
Small 4pc Resin Base
(optional purchase). For fitting over ballast block frame, 100 x 100cm, H 11cm, sand ballast 100kg.

SPECIFICATIONS
| LYNDEN | 330 Octagonal |
|---|---|
| Shape | Octagonal |
| Dimensions (cm) (A) | 330 |
| Mast Height (B) | 260 |
| Clearance (C) | 200 |
| Area (m2) |
8 |
| Mast | Oval 75 x 50mm |
| Opening | Winder system |
| Tilt | Variable to 60º |
|
|
- Installation clearances for Lynden 330 Octagonal
- Click on the link Above for measurements
